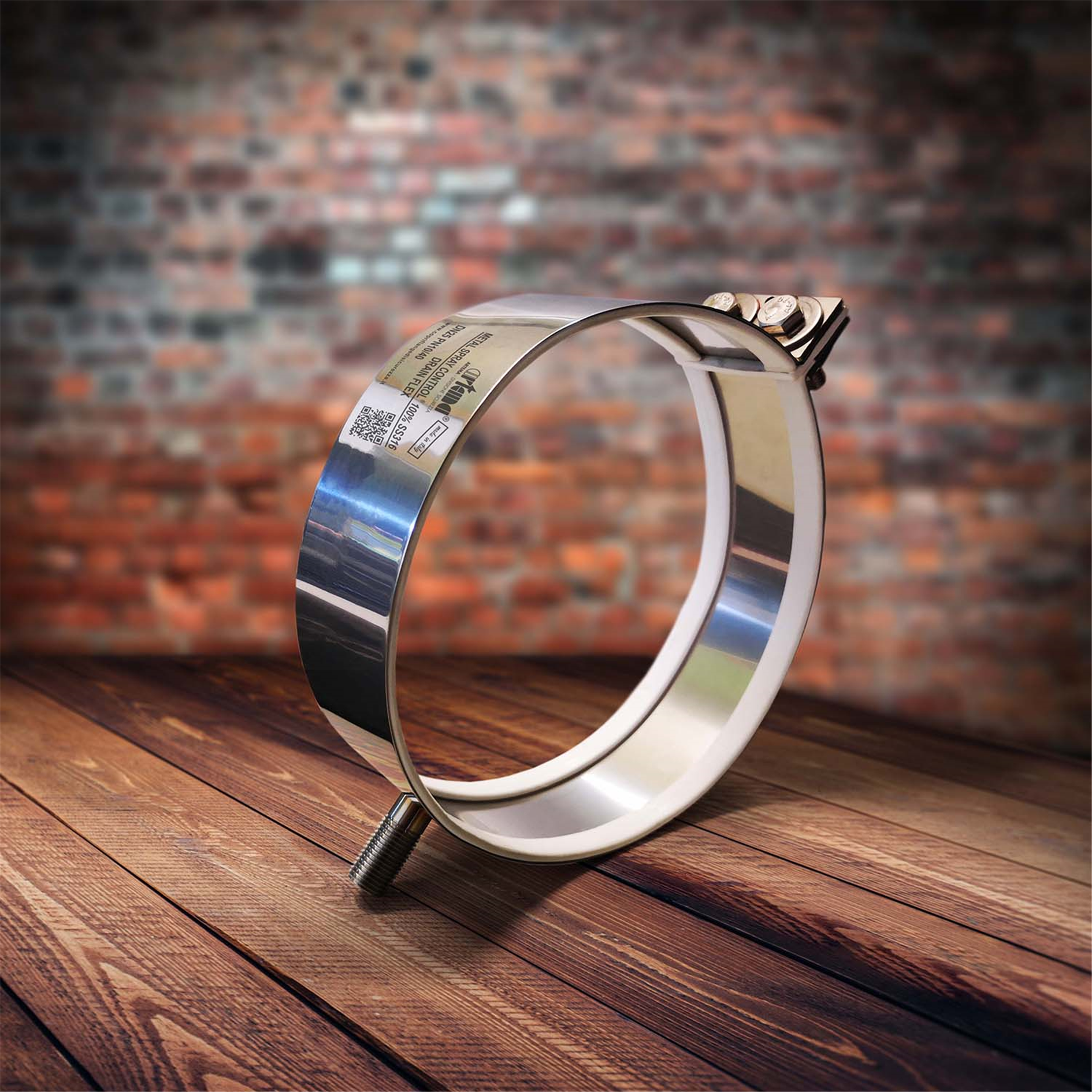

Metal Spray Control® Drain Flex
MATERIAL
100% stainless steel AISI 316L (DIN 1.4404). Metal sheet 0,5 mm thick.
INTERNAL GASKET
ARTEMA FLEXSEALR 100% expanded PTFE gasket tape
with adhesive layer for fixing to the flange guard.
LOCKING SYSTEM
A4 stainless steel M6 bolts.
DRAINING PIPE “DRAIN”
AISI 316 with .” Gas male thread.
MARKING
Laser identification “DN?PN”, “INCH?ANSI”.
DIMENSIONS
Standard (UNI/ASME) and customized. Standard width 50 mm or customized.
CERTIFICATIONS
• BUREAU VERITAS, ABS and DNV for SOLAS Ch.II-2 and IMO MSC/Circ. 647 legislation.
• Protective efficacy test-report and drainage capacity with RINA inspection report.
