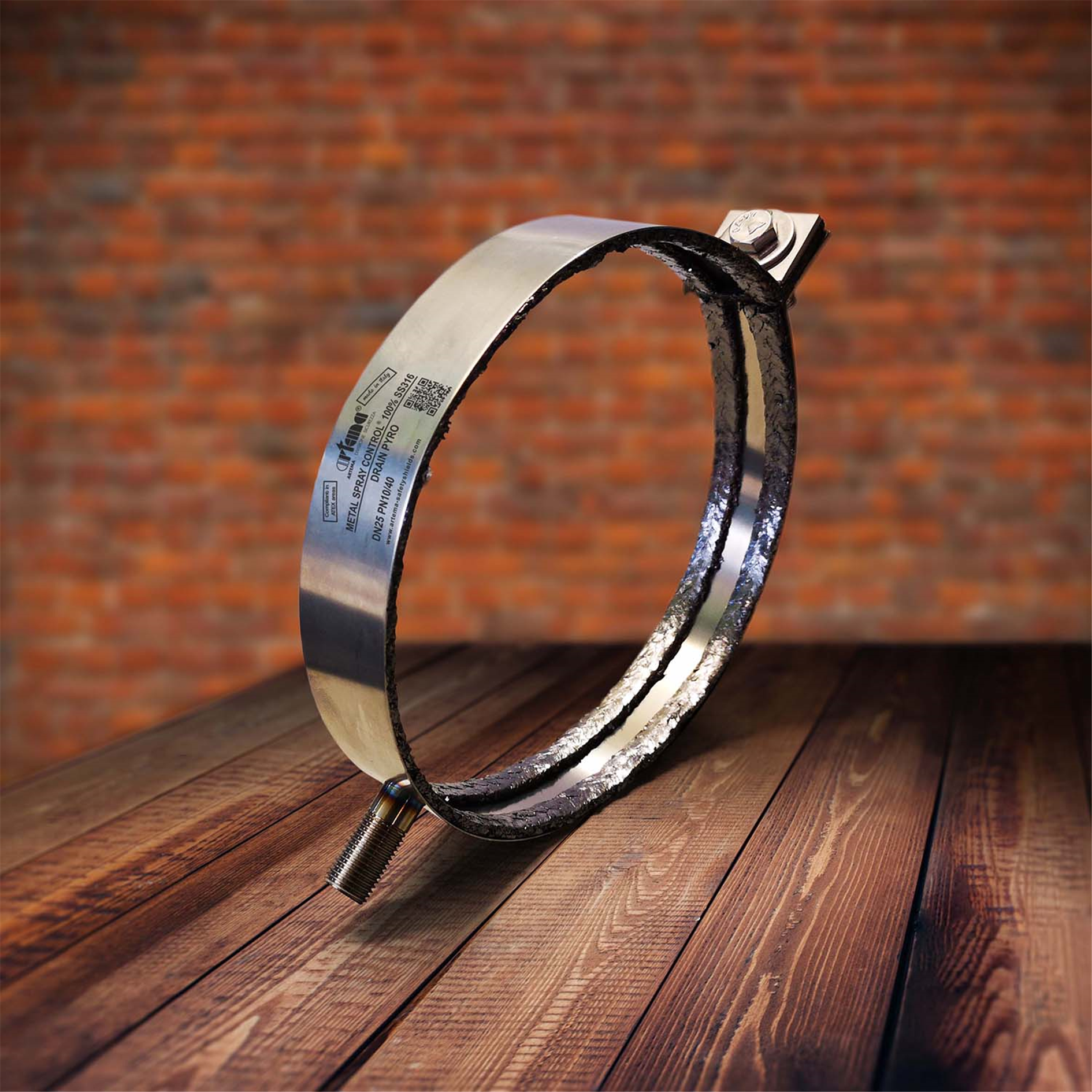

Metal Spray Control® Drain Pyro
MATERIAL
100% stainless steel AISI 316L (DIN 1.4404).Metal sheet 0,5 mm thick.
INTERNAL GASKET SLADER PYROTEXR GASKET H.T.
gasket tape made with f lexible graphite with carbon fiber reinforced with steel foil.
LOCKING SYSTEM
A4 stainless steel M6 bolts.
DRAINING PIPE “DRAIN”
AISI 316 with .” Gas male thread.
MARKING DIMENSIONS
Standard (UNI/ASME) and customized. Standard width 50 mm or customized.
CERTIFICATIONS
• BUREAU VERITAS, ABS, DNV certificate for SOLAS Ch.II-2 and IMO MSC/Circ. 647 legislation.
• Compliant with ATEX standards (European Directive 2014/34/UE)
for use in environments with a potentially explosive atmosphere (0-1-2 and 20-21-22 zones).
• Report of protective efficacy and drainage capacity test executed in an accredited certifying laboratory.
• JET FIRE phenomenon protective efficacy testreport with RINA inspection report.
Laser identification “DN?PN”, “INCH?ANSI”.
