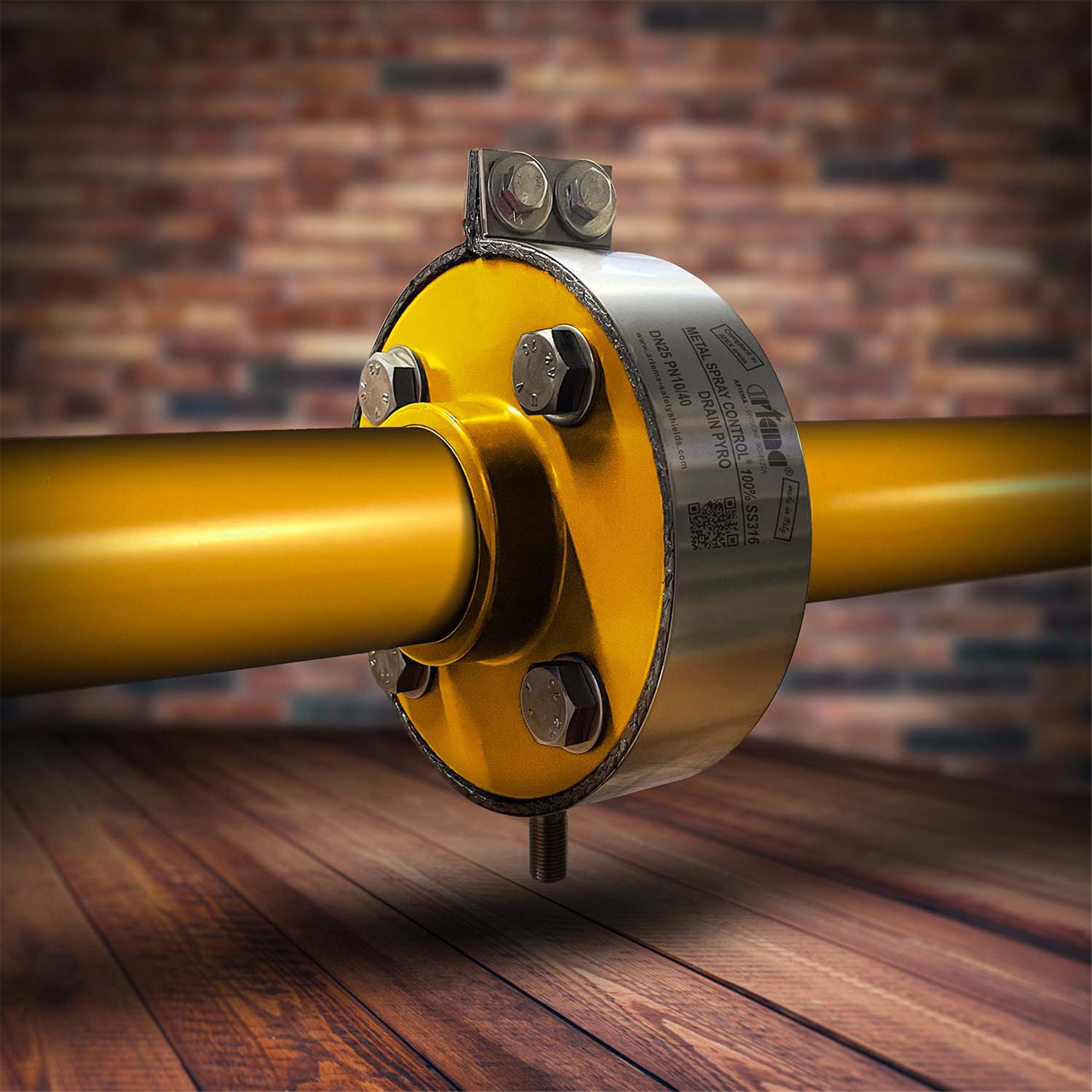

Metal Spray Control®
MAIN MATERIAL
100% stainless steel AISI 316L (DIN 1.4404).
Metal sheet 0,5 mm thick. Welded in two points
every 4 cm internal steel mesh, which works
like a filter absorbing the leakage and distributing
it around the circumference of the flange to cancel
the pressure and reduce the kinetic energy of the leakage.
Internal longitudinal relief for centering and reduction
of pressure and kinetic energy of the leakage.
LOCKING SYSTEM
Welded in four points spaced 1 cm apart steel locking system.
MARKING
Laser identification “DN-PN”, “INCH-ANSI”.
USE
Round, oval, square flange. Reusable.
CERTIFICATES
• ABS and BUREAU VERITAS certificates for
SOLAS Ch.II-2 and IMO MSC/Circ. 647 legislation.
• RINA approved for:
sealing, pressure and temperature tests;
breaking parameters tests;
tightness tests of the closing system.
• Compliant with ATEX standards (European Directive 2014/34/UE)
for use in environments with a potentially explosive atmosphere
(0-1-2 and 20-21-22 zones as defined in the standards CEI 31-30 and CEI 31-66).
• API FIRE TEST 6FB certificate.
• RINA approved for protective efficacy from JET FIRE phenomenon.
• Certified resistance under pressure and protective efficacy up to 270 bar.
• Certified resistance under temperature up to +846° C.
• Certificate in accordance with EN10204/3.1B agreements.
