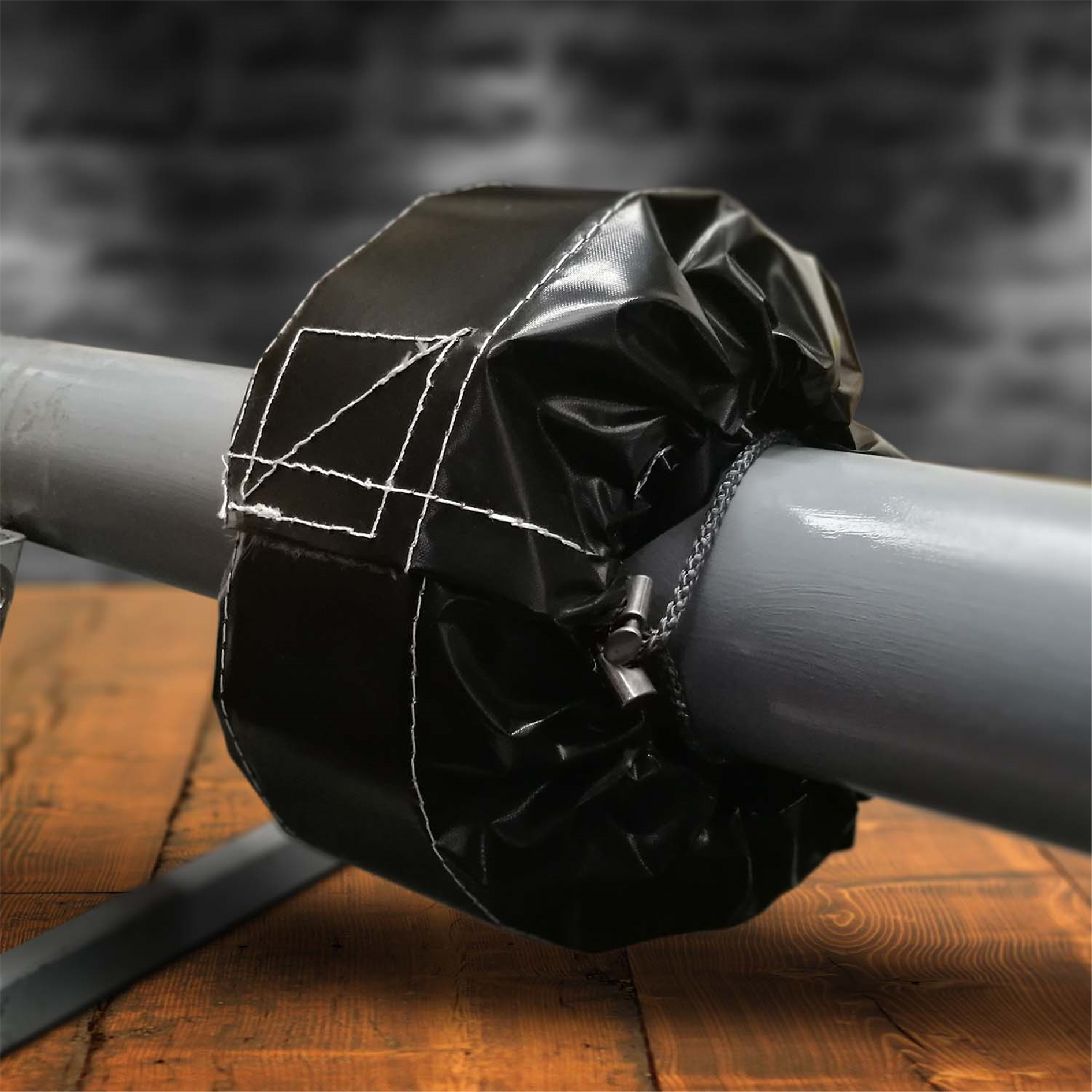

Safecap® Tfe-B-As
PARTICULAR CHARACTERISTICS
Antistatic properties of each single component of
SAFECAP® TFE-B-AS. High electrical conductivity
due to the low value of the surface resistivity
(3.2 kΩ < 109 kΩ according to EN 60079-0: 2009).
MAIN MATERIAL
Fabric with glass yarns impregnated yarn-by-yarn
with a special formulation of filled PTFE (black color).
Triple layer construction with internal reinforcement.
SEAMS
I-TECH 20 conductive wire with combined with
Polyester- Stainless Steel continuous polyamide filaments.
DIMENSIONS
Standard (UNI/ASME) and custom.
LOCKING SYSTEM
Impregnated with silver polyamide fabric with silver filaments
SILVER-AS velcro. Equipped with a conductive metal alloy
safety lugs, SAFELON B-AS locking lanyard with diagonally
braided carbon yarn.
USE
In chemical plants where the accumulation of electrostatic
charges is to be avoided. Specifically designed for use
with chemical agents and/or extreme temperatures.
CERTIFICATES
Tested in accordance with EN60079-0 for applications in Standard
(UNI/ASME) and custom. ATEX areas (European Directive 2014/34/EU).
